Expanded Metal Tote Baskets

Expanded Metal Tote Baskets

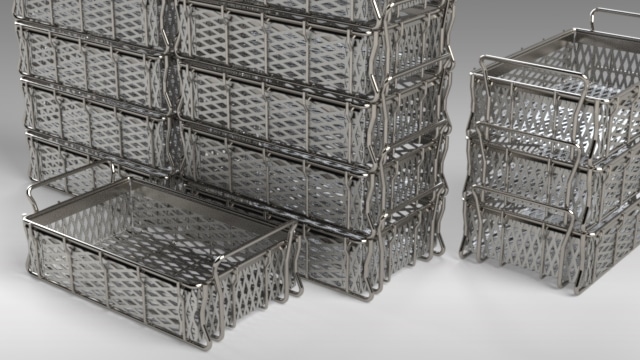

Stacking Tote Basket: 16″L x 10″W x 4-1/2″H (approx. outside dimensions of lined area)
Perfect for Part Storage, Shipping and Material Handling
Strong 5/16″ Dia. Rod Stacking Handles, with 3/16″ Dia Rod cross rods to support parts
Lined with 1/2″ x #18 Flattened Expanded Metal (1.0″ x 0.31″ diamond shaped Openings, 60% Open Area)
Top edges of Expanded Metal covered with sheet metal J-channel
Zinc Plated Mild Steel
Approximate Load Capacity: 75 lbs.
Estimated Basket Weight: 7 lbs.

Customer Requirements

These Expanded Metal Baskets needed to be durable with a welded metal rod frame in a selection of materials and lining options.

Our Solution

Expanded Metal Stacking Tote Basket is available in three standard sizes, each size in several lining options and material options.  All styles have a 5/16″ Dia. Rod frame and Handles, 3/16″ Dia. Supporting Rods, Lined with Flattened Expanded Metal fully resistance welded into the frame and ground smooth.  Estimated weight capacity 65 lbs.

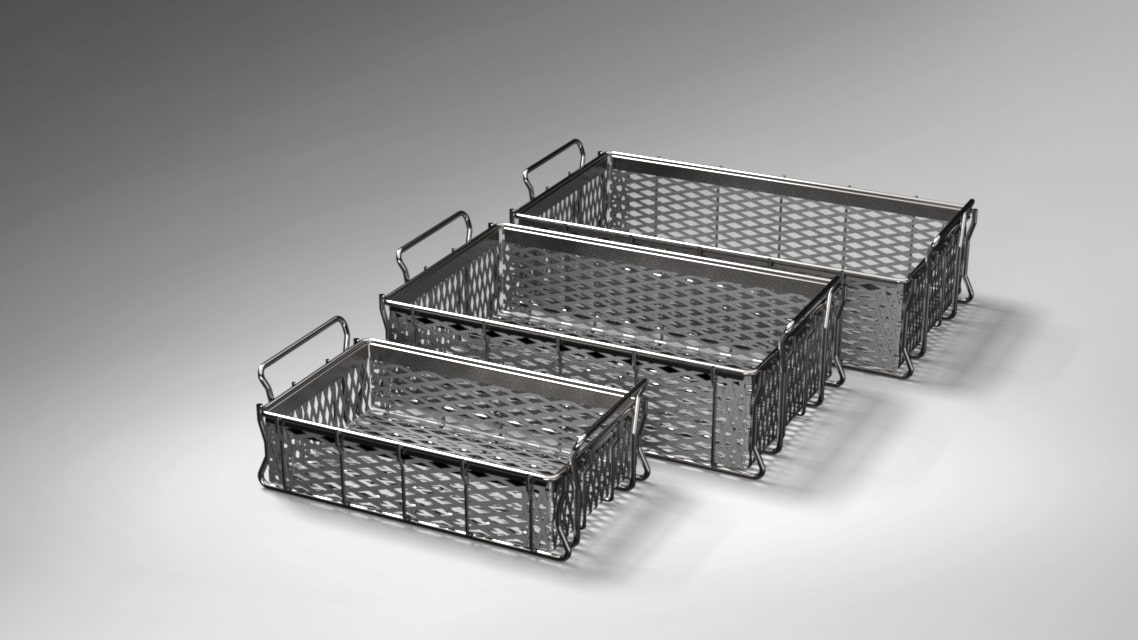

Standard Sizes:

  • 16″L x 10″W x 4-1/2″H
  • 21″L x 13-1/4″W x 6″H
  • 24″L x 13-1/4″W x 6″H

Standard Lining Options

  • 1/4″ #18 Flattened Expanded Metal, 0.666″ x .146″ Diamond Shaped Openings, 49% open Space
  • 1/2″ #18 Flattened Expanded Metal, 0.955″ x .315″ Diamond Shaped Openings, 66% open Space

Standard Material Options

  • Zinc Plated Carbon Steel
  • 304 Stainless Steel
